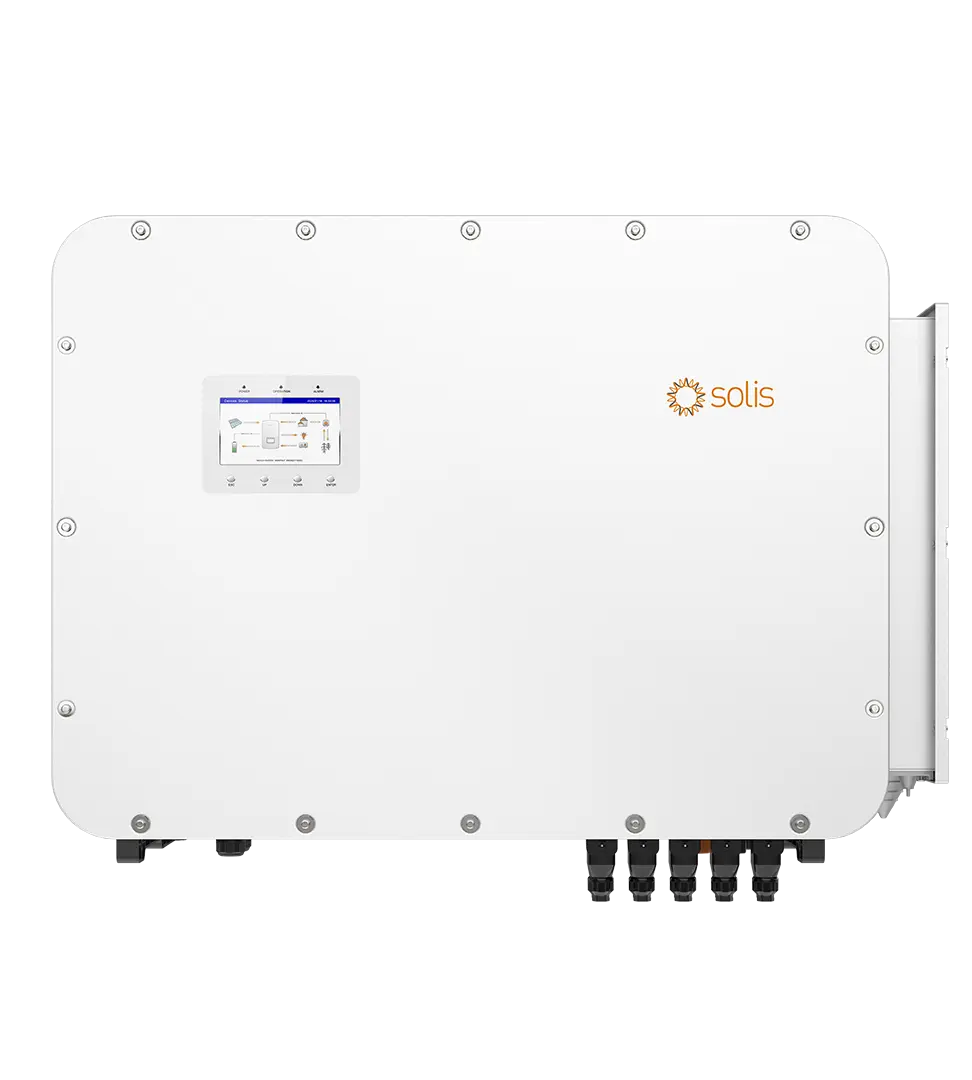

Solis S6-EH 3P 100KW Grid Tied Inverter

The Solis S6-EH(80-125)K10-NV-YD-H is a high-voltage, three-phase energy storage and grid-tied inverter designed for commercial and industrial (C&I) applications. It features 10 MPPTs, handles string currents up to 21A, and supports up to \(200\%\) backup overload, making it highly flexible for on-grid and off-grid peak shaving.

Specifications

1. Maximum Charge / Discharge Current:
   100A + 100A across two independent battery ports.
2. Maximum Efficiency:
   Up to 98% efficiency for optimized energy conversion.
3. Integrated MPPT Channels:
   Features 10 built-in MPPT channels for enhanced solar energy harvesting.
4. High String Current Support:
   Supports string current up to 20A – 21A.
5. Wide Battery Compatibility:
   Compatible with high-voltage battery modules ranging from 100Ah to 314Ah.
6. Overload Capability:
   Supports up to 2.0 times overload for short durations on the backup port.
7. System Scalability:
   Allows parallel operation of up to six identical units.
